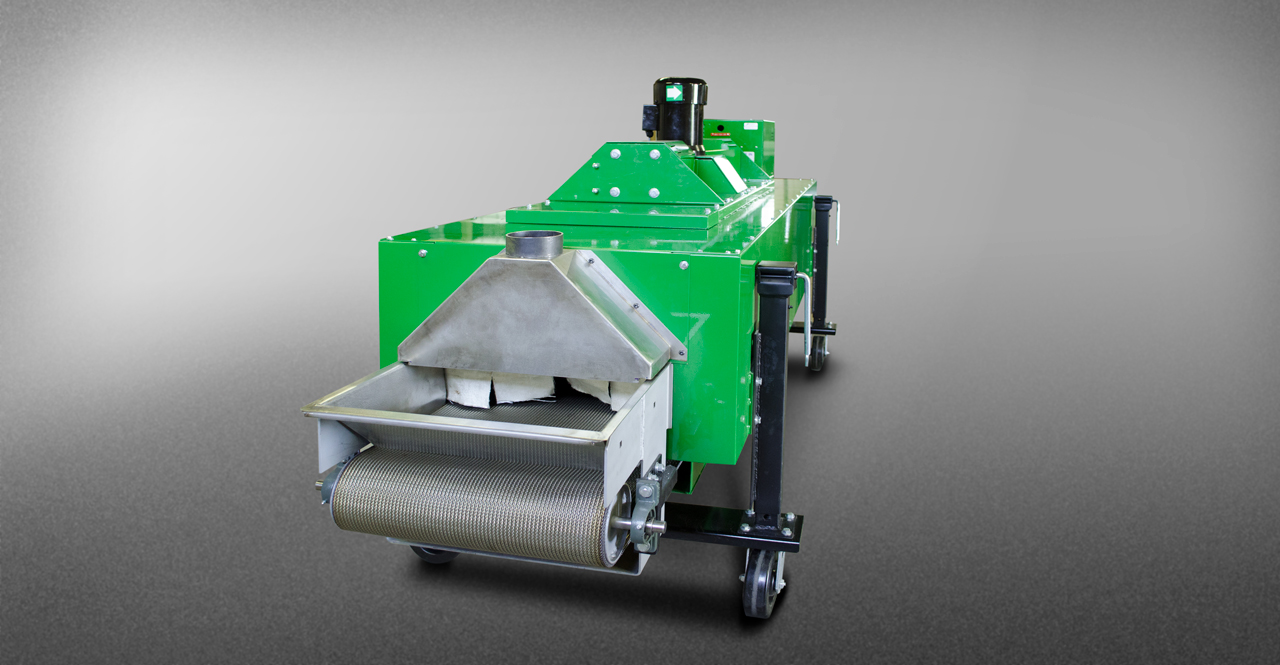

JN-1888
A workhorse model, ideal for parts up to .312″ (8mm) dia
18″ (457mm) wide, flat belt edge. Turned-up belt is an option. Jacks for belt height adjustment 20″-45″. Solid body design with stainless steel conveyor. Automatic time delay shut down for belt cooling.
| JN-1888 Technical Data | |
|---|---|
| Footprint | 38″ x 123″ (965mm x 3124mm) |
| Chamber Size (W x L x H) |
18.0″ x 88″ x 5.0″ (457mm x 2235mm x 127mm) |
| Capacity | 750 lb/hr @ 500°F 525 lb/hr @ 750°F |
| Max Temperature | 999°F (540°C) |
| Volts | 208, 240 or 480 |
| Amps |
71A @208V, 59A @240V, 30A @480V |
| Watts | 15,600 |
